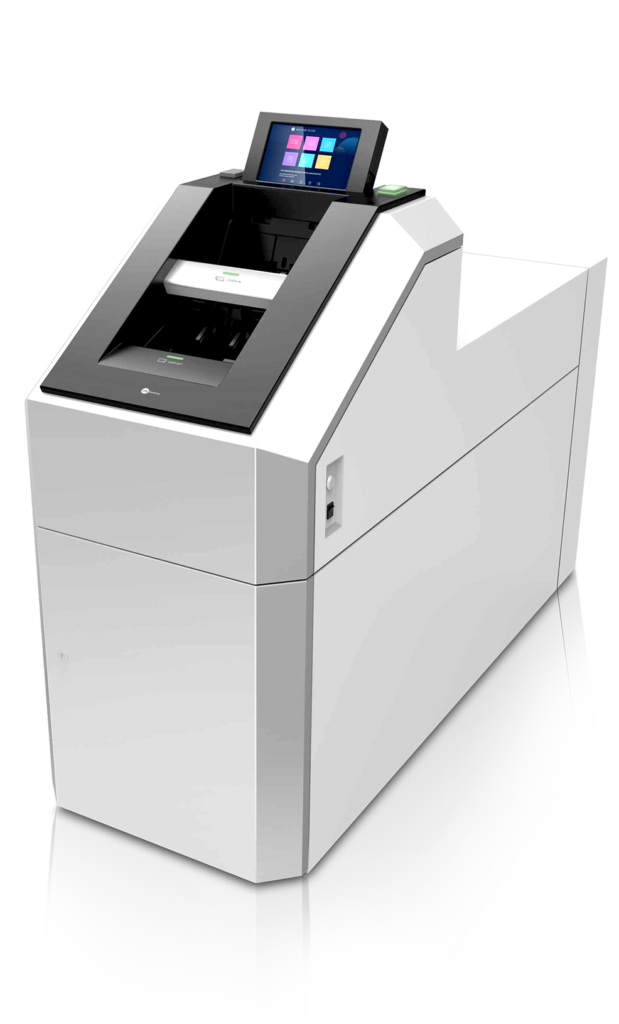

TCR17 Series
Teller cash recycler
As modern branch continues to improve the efficiency, automation and recycling technology are highly demanded to give the fleeting response for customers. By providing high processing speed, big capacity and multidenomination support capabilities, GRGBanking TCR is the favorable assistant for financial institutions to meet requirements of branch automation and create a perfect environment to focus more on customer service and satisfaction.
- Self-owned cash recycling technology
- Serial Number Tracking
- Premier Security
- Multi-denomination support
- Multi-operator support
Features
UNRIVALLED INNOVATION
With the latest GRGBanking recycling technology, TCR can support 8 denominations recycling at 12 notes/sec speed, which greatly improve the efficiency while ensuring the multi-denomination support. Besides, dual-operator support on TCR also increases financial institutions input-output ratio.
SERIAL NUMBER TRACKING
With the OCR (Optical Character Recognition) technology for cash tracing and tracking, TCR can record serial
numbers of processed notes, supporting account reconciliation, fraud and cash shrinkage management for financial institutions.
PREMIER SECURITY
UL291 Level 1 safe, optional vibration alarm and remote monitoring software solution ensure a secure transaction
environment. Biometric authentication is also available on TCR, which creates the capability of preventing misuse and improper
authorization in operating
Specification
CONTROLLING UNIT
Intel® Core™ i3/i5/i7 3.3Ghz CPU, 4G RAM (up to 16GB)
Windows® 7/10

500G HDD (Dual HDD support), DVD-RW
INTERACTION UNIT

21.5” FHD (1920X1080) display

21.5” multi-touch display for operation

HD camera

Audio speaker and Microphone
CUSTOMER INTERFACES

Tactile 4*4 stainless steel keypad

PCI compliant EPP

Card reader /dispenser/printer
CHEQUE PROCESSING UNIT(OPT.)

Bundle/single cheque acceptor
COMMUNICATION

Standard TCP-IP connection
BANKNOTE PROCESSING UNIT

Deposit/dispense speed: 8 notes per second

Up to 4 recycling cassettes and 1 acceptance cassette

Recycling cassette capacity: max. 3,350 notes

Acceptance cassette capacity: max. 2,000 notes
MAINTENANCE

10.4” LCD service panel with touch screen (available on rear access model)

Front, rear access
